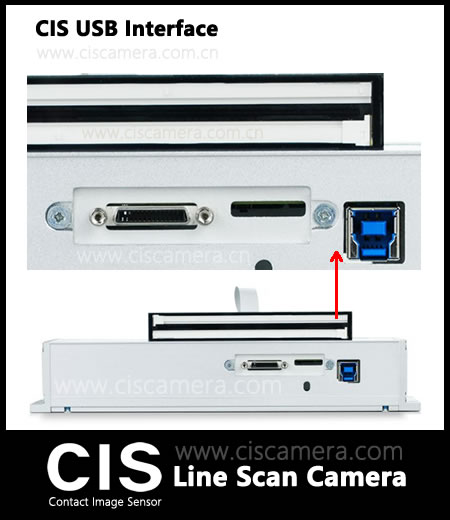

CIS Line Scan Camera USB Interface
Contact Image Sensors (CIS) consist of a linear array of CMOS image sensors (monochrome or colour) of varying widths to cover the field of view. CIS modules include an integrated LED light source (UV, visible, NIR or a combination), which reflects off the scanned object surface and is focused onto the CMOS image sensor element through a self focusing linear lens.
Compared to conventional line scan camera systems, CIS modules offer improved image quality (1:1) with no distortion and a short working distance. The compact space efficient units with internal light source provide a single scanning width from 18 ~ 6000mm* making them ideal for integration into machine vision systems and applications including; web inspection, surface inspection, printing inspection, film inspection, PCB inspection, textile inspection and glass panel inspection.
Please see below for information on the USB 3.0 CIS Line Scan Camera Options:
| Technical Parameters <CIS-3U Series> | Customisation | ||||||
|---|---|---|---|---|---|---|---|
| Scanning width (mm) | 108/216/310/650/940 CIS-3U(310~940)M/C |
18mm～940mm | |||||
| Resolution (dpi) | – | 100 | 200 | 300 | 600 | Resolution 100dpi～600dpi | |
| Precision (mm) | – | 0.25 | 0.125 | 0.084 | 0.042 | ||
| Scanning speed (8bit) 10GigE |
Mono | m/min | 2970 | 1030 | 522 | 150 | |
| KHz | 195 | 136 | 104 | 61 | |||
| Colour | m/min | 990 | 344 | 175 | 50 | ||
| KHz | 65 | 45 | 34 | 20 | |||
| Inner light source | Red, Green, Blue (or without light source) | External light source | |||||
| Working distance (mm) | 3.5/8/14.8/17.2/29.3/48.4 | 3.5～48.4mm | |||||
| Interfaces | USB3.0 | USB3.0 | |||||
