CIS Line Scan Camera

CIS Line Scan Camera GigE

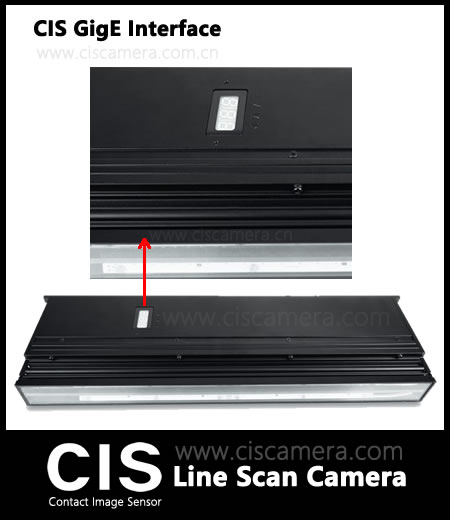

CIS Line Scan Camera GigE Interface
Contact Image Sensors (CIS) consist of a linear array of CMOS image sensors (monochrome or colour) of varying widths to cover the field of view. CIS modules include an integrated LED light source (UV, visible, NIR or a combination), which reflects off the scanned object surface and is focused onto the CMOS image sensor element through a self focusing linear lens.
Compared to conventional line scan camera systems, CIS modules offer improved image quality (1:1) with no distortion and a short working distance. The compact space efficient units with internal light source provide a single scanning width from 18 ~ 6000mm* making them ideal for integration into machine vision systems and applications including; web inspection, surface inspection, printing inspection, film inspection, PCB inspection, textile inspection and glass panel inspection.
Please see below for the 10GigE/2.5GigE Interface CIS Line Scan Camera options:

Features & Benefits:

1、Compact – easily integrated into production lines/machines, reducing the volume of inspection systems
2、1:1 imaging with telecentric view to detect printed graphic quality and surface damage effectively
3、Single scanning width from 18 ~ 6000mm, no alignment issue of multiple cameras and lenses
4、Flexible external light angle allows inspection of even more defects, such as small holes
5、Single CIS supports reflected light and backlight
6、Optional filter to eliminate parasitic light
7、Distortion-free imaging : 1:1 image
8、Wide angle seamless imaging : min 18mm-max 1960mm
9、Fast scanning speed : max 61kHz@600dpi
10、High resolution : max 600dpi
11、Working distance : min 0.9mm-max 48.4mm (optional)
12、Interfaces : 10GigE/2.5GigE (optional)

Applications:

1、Battery foil inspection: coating, slitting, notching, lamination
2、Printing: label, narrow web, metal sheet, carton
3、Plastic film packaging
4、Glass and ceramic surface inspection
5、Panel: surface, dimensions, hole alignment
6、Silicon wafer: pattern, serial number, crack, dust
7、Textiles: leather quality, cloth colour/quality

Specification & Models:

Technical Parameters <CIS-10G/CIS-2.5G Series>							Customisation
Scanning width (mm)	310mm CIS-10G310M/C;CIS-2.5G310M/C						310mm～1960mm
Resolution (dpi)	–		100	200	300	600	Resolution 100dpi～600dpi
Precision (mm)	–		0.25	0.125	0.084	0.042
Scanning speed (8bit) 10GigE	Mono	m/min	2970	1030	522	150
	Mono	KHz	195	136	104	61
	Colour	m/min	990	344	175	50
	Colour	KHz	65	45	34	20
Resolution (dpi)	–		100	200	300	600	Resolution 100dpi～600dpi
Precision (mm)	–		0.25	0.125	0.084	0.042
Scanning speed (8bit) 2.5GigE	Mono	m/min	2970	1020	520	150
	Mono	KHz	195	136	104	61
	Colour	m/min	990	342	170	48
	Colour	KHz	65	45	34	20
Inner light source	Mono (white LED), Colour (R/G/B LED)						External light source
Output format	Optical fibre (GenICam compliance)
Working distance (mm)	3.5/8/14.8/17.2/29.3/48.4						3.5～48.4mm
Interfaces	10GigE/2.5GigE (optional)						10GigE/2.5GigE (optional)
