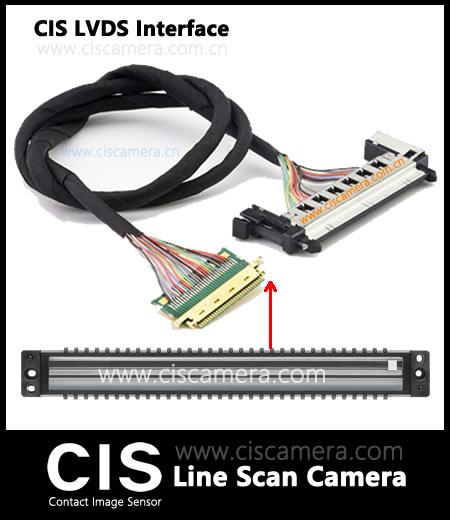

CIS Line Scan Camera LVDS Interface
Contact Image Sensors (CIS) consist of a linear array of CMOS image sensors (monochrome or colour) of varying widths to cover the field of view. CIS modules include an integrated LED light source (UV, visible, NIR or a combination), which reflects off the scanned object surface and is focused onto the CMOS image sensor element through a self focusing linear lens.
Compared to conventional line scan camera systems, CIS modules offer improved image quality (1:1) with no distortion and a short working distance. The compact space efficient units with internal light source provide a single scanning width from 18 ~ 6000mm* making them ideal for integration into machine vision systems and applications including; web inspection, surface inspection, printing inspection, film inspection, PCB inspection, textile inspection and glass panel inspection.
Please see below for information on the LVDS CIS Line Scan Camera Options:
| Technical Parameters <CIS-3U Series> | Customisation | ||||||
|---|---|---|---|---|---|---|---|
| Scanning width (mm) | 108/216/310 CIS-LVDS(108~310)M/C |
18mm～940mm | |||||
| Resolution (dpi) | – | 200 | 300 | 600 | 1200 | Resolution 200dpi～1200dpi | |
| Precision (mm) | – | 0.125 | 0.084 | 0.042 | 0.021 | ||
| Scanning speed (8bit) LVDS Interfaces |
Mono | m/min | 630 | 332 | 102 | 28 | |
| KHz | 82 | 65 | 40 | 22 | |||
| Colour | m/min | 210 | 110 | 34 | 9 | ||
| KHz | 27 | 21 | 13 | 7 | |||
| Inner light source | Red, Green, Blue (or without light source) | External light source | |||||
| Working distance (mm) | 8/14.8/17.2/29.3 | 3.5～29.3mm | |||||
| Interfaces | LVDS | LVDS | |||||
